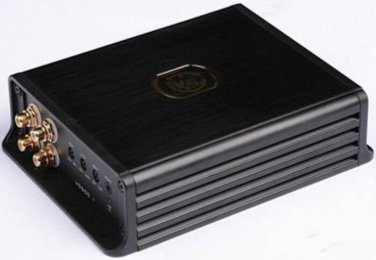

VE Audio
The Car Audio of High Fidelity
Design By USA, Made in China
Ratings by Manual-
300w x 1 4Ω 14.4v 1%THD
600w x 1 2Ω 14.4v 1%THD
THD- 100dB
Inp. Sens.- 120mV - 5V
Dimensions- 7.76" x 5.83" x 1.97"
Power Supply- 10-16V
Buildhouse Tested Data-
375w x 1 4Ω 14.4v 1%THD
643w x 1 2Ω 14.4v 1%THD
Efficiency at 4Ω- 89.7%
Efficiency at 2Ω- 87.6%
Inp. Sens.- 126.5mV - 4.825V
THD- 0.056%
SNR- 110.3dB
Damping Factor- 656
Power Supply- 10.1-16.2v
Idle Consumption- 1000mA
Protection Parameters-
Thermal- 75C +/- 5C
Thermal Recover- 0C - -8C from 75C +/- 5C
Over V- 16.2V
Under V- 10.1V
Warranty- 1 Yr from date of purchase.
