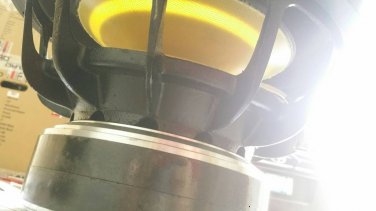

Available in Custom Single 1ohm or 2ohm voice coil
Single 1ohm model
Kevlar Yellow Cone
Carbon Fiber Dustcap
High Density Pressed Foam Surround
Aluminum Housing
RE- 0.9804 ohms
FS- 35.0717 Hz
Zmax- 19.7038 ohms
Qes- 0.6151
Qms- 11.7475
Qts- 0.5845
EBP- 57.0179 (sealed/ported/4th BP/6th BP)
Le- 1.4368 mH (1KHz)
Diam- 255 mm (10.0394")
Sd- 51070.5151 mm^2 (79.1595 in^2)
Vas- 22.6853 L (0.8011 ft^3)
BL- 10.8688 N/A
Mms- 336.3467 g
Cms- 61.2265 uM/N
Kms- 16332.7861 N/M
Rms- 6.3093 R mechanical
Efficiency- 0.1495%
Sensitivity- 83.7640 dB @1w/1m
Sensitivity- 92.8808 dB @2.83vrms/1m
Krm- 5.066E-03 ohms Freq Dependent Resistance
Erm- 759.835E-03
Kxm- 28.915E-03 Henries Freq Dependent Reactance
Exm- 643.435E-03
Xmax- 18.5mm
----------------------------------------------------------------------
Ftest- 30.109 Hz
Ftest/Fms- 0.8585
Test Mass Used- 120.0000 g (24.0 nickels)
Test Mass (Ft=Fms*0.90)- 78.896 g
Test Mass (Ft=Fms*0.75)- 261.603 g
